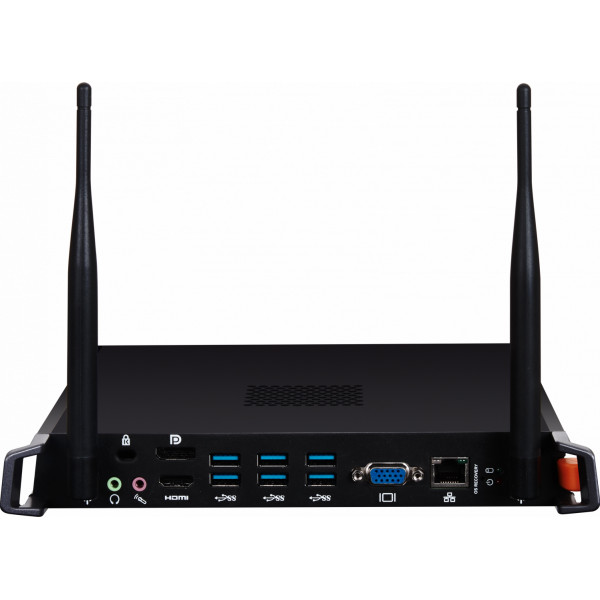

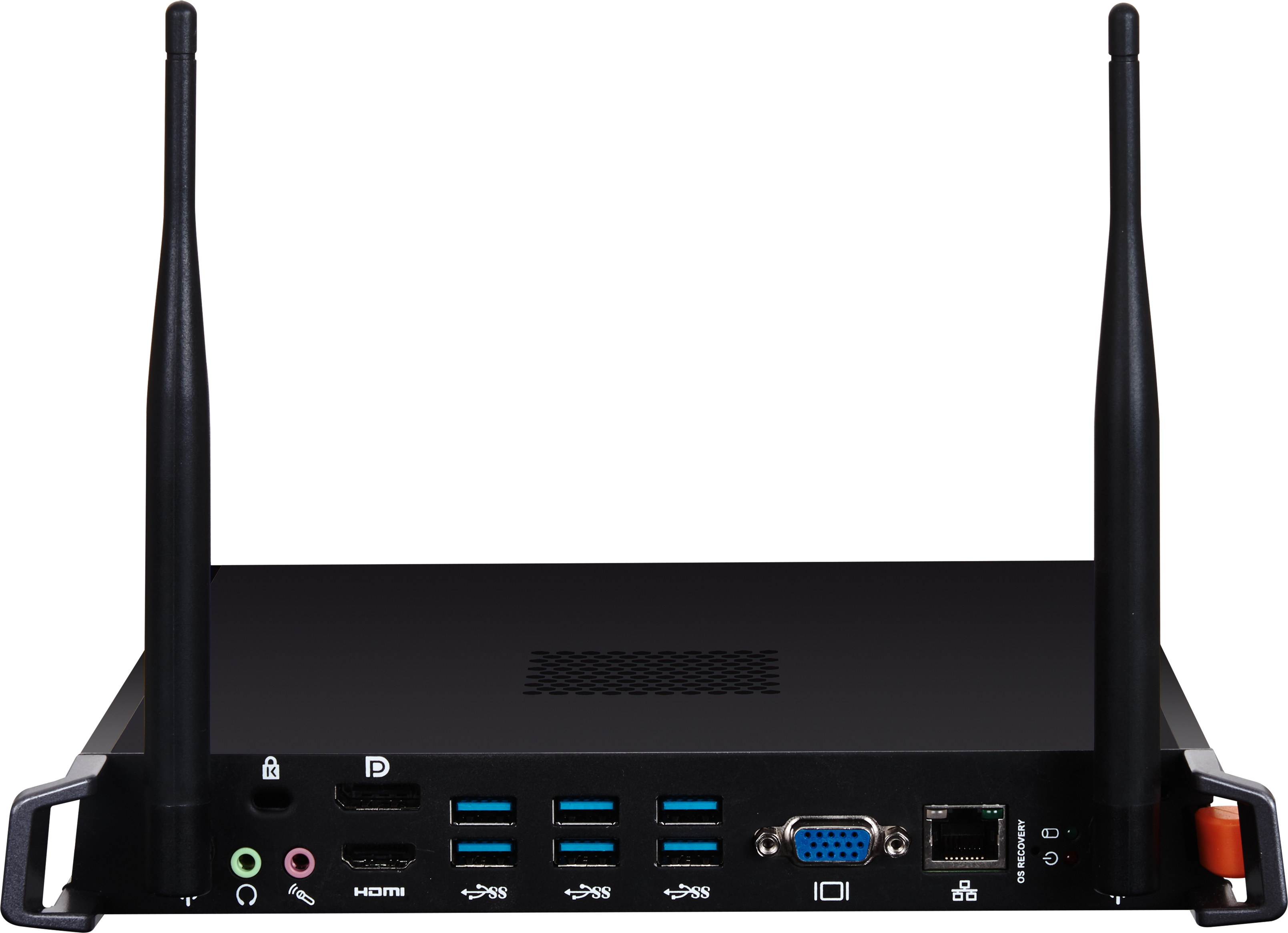

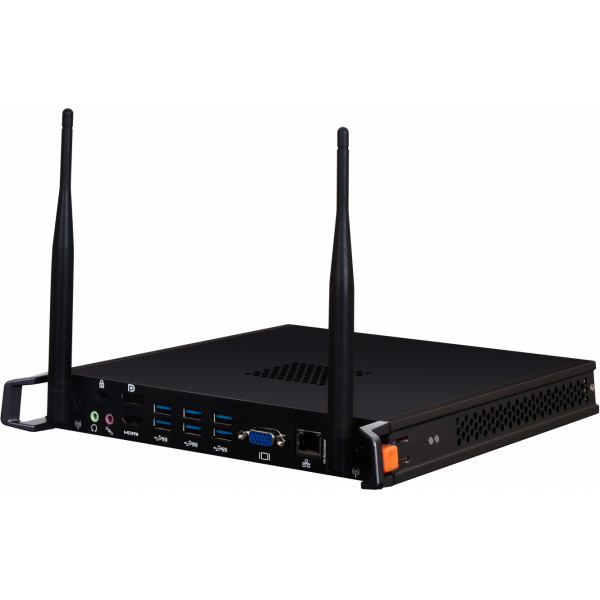

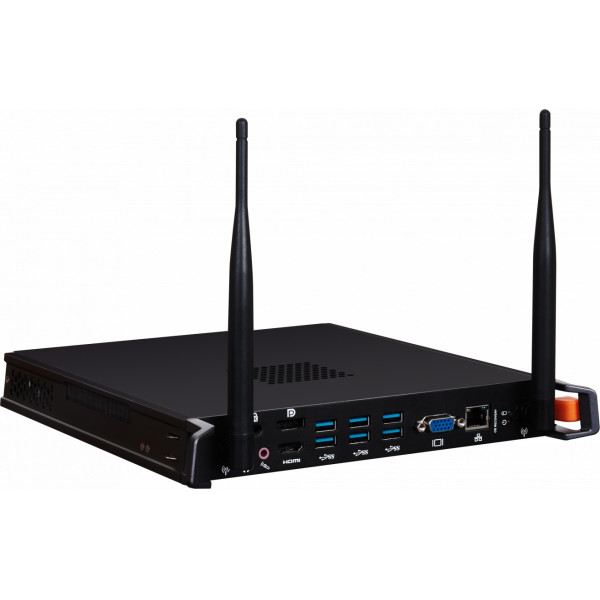

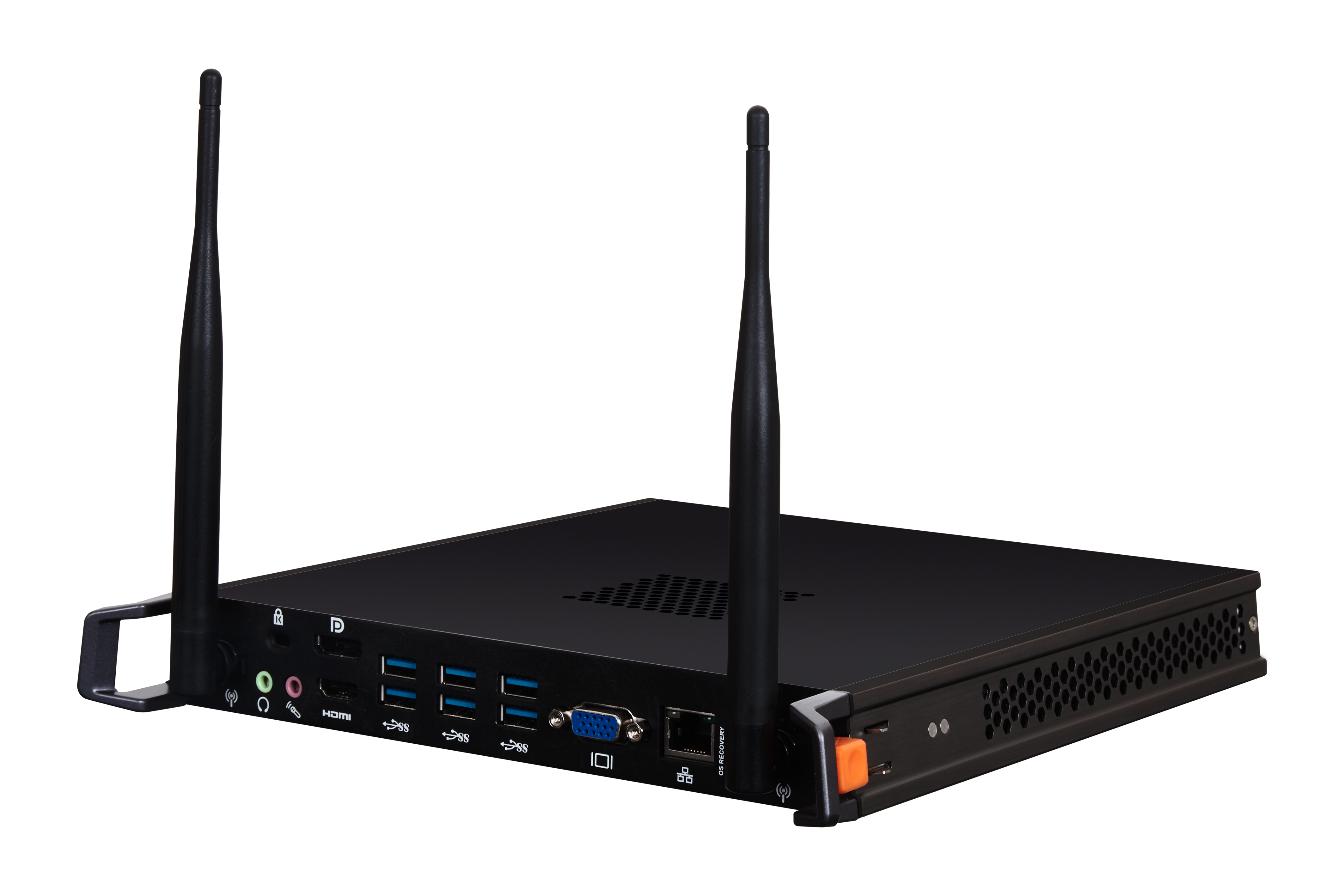

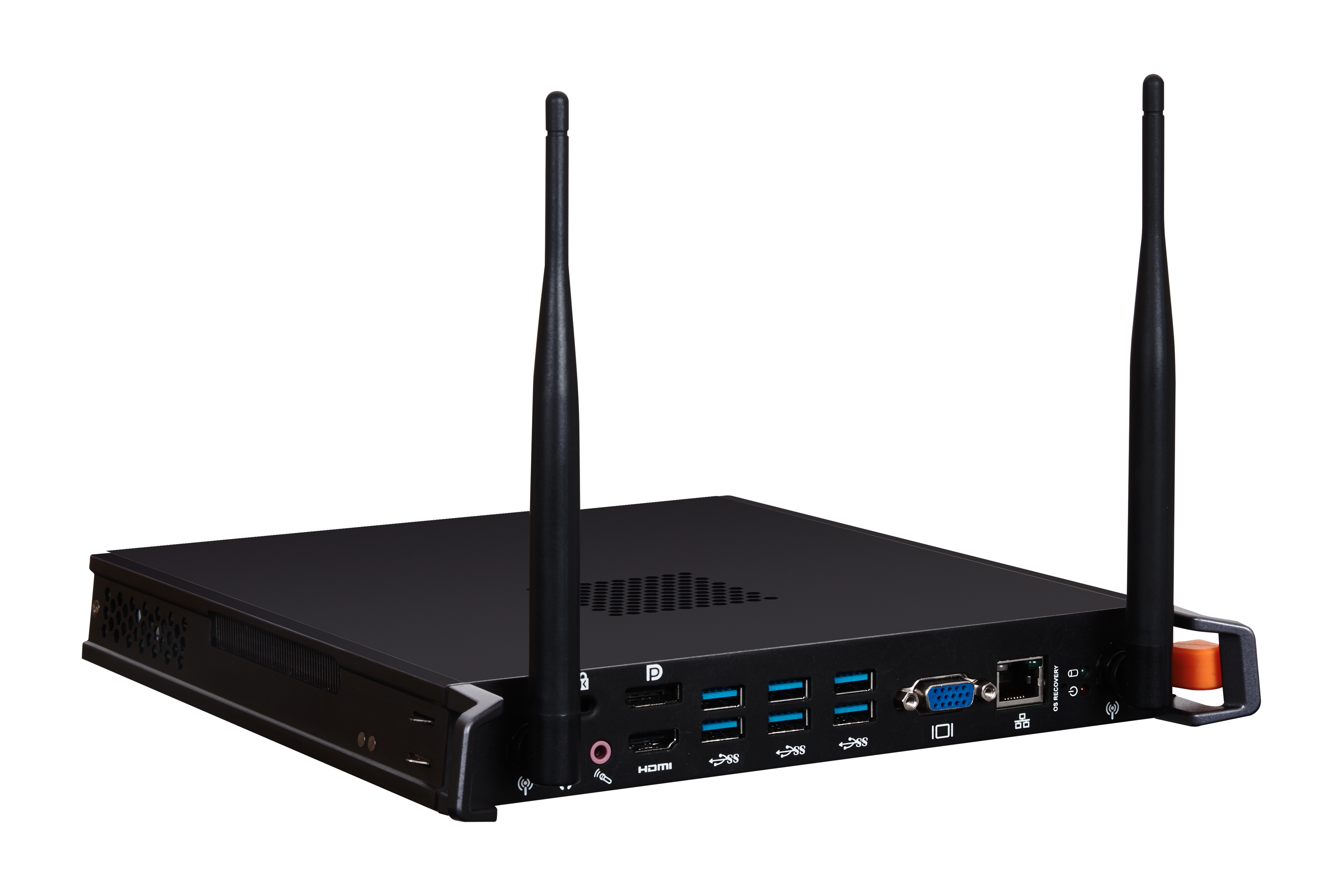

VPC10-WP-6

Slot-in PC for the ViewBoard® interactive displays

This module easily plugs into compatible displays.
A powerful Intel® i5 processor provides the computing power needed for fast-paced educational or corporate environments.
Incredibly fast Wi-Fi performance and Bluetooth support with dual band 802.11 AC wireless.

استفسارعن المبيعات

معرض

نظرة عامة

The ViewSonic® VPC10-WP-6 slot-in PC, with a powerful Intel® i5 processor and dual band 802.11 AC wireless, is an integrated solution for the ViewBoard® interactive displays.

المواصفات

النواة
وحدة المعالجة المركزية: Intel i5-6400
Graphics: Integrated Intel® HD Graphics 530
Total Available Graphics Memory: 64GB
Max Resolution up to 4096x2304@60Hz
Memory
Type: 260-pin DDR4 SO-DIMM x 2
القدرة: 4GB (up to 16GB)
Storage
المقاس: 2.5"
القدرة: 500GB HDD (up to 1TB)
Interface: SATA3 6GB/sec

INPUT
MIC(Microphone): x1
OUTPUT
RGB / VGA: x1
منفذ الشاشة: x1 (max. resolution 4096x2304@60Hz)
HDMI: x1 (max. resolution 4096x2304@24Hz)
الصوت: x1 Earphone Out
LAN
RJ45: x1 (Intel I217 LM / RTL 8111 E Integrated 10/100/1000M Adaption)
Wireless / Bluetooth
Wireless / Bluetooth: Intel® Dual Band Wireless-AC 3165
802.11 a/b/g/n/ac (2.4GHz/5GHz) / BT4.0 ; BLE
USB
Type A: x6 (3.0)
Power
Voltage: AC 110-240V 50/60Hz 1A
الاستهلاك: 95W
OPERATING CONDITIONS
Temperature (º C): 0°C to 45°C
Humidity: 10% ~ 90% non-condensing
المقاسات (العرض × الارتفاع × العمق)
Physical (inch / mm): 246.2*265.4*32.2mm
Packaging (inch / mm): 353*312*91mm (1pc)
475*367*337mm (5pcs)
WEIGHT
Net (lb / kg): 4.19lb / 1.9kg
Gross (lb / kg): 5.29lb / 2.4kg
REGULATIONS
REGULATIONS: FCC, FCC ID, IC ID, cTUVus, CE, CB, BSMI, NCC, iDA, RCM, SDPPI, EAC, CCC, CEL, ARGEN, RED, BIS, ICT
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. VPC10-WP
2. ViewSonic Wizard CD
3. QSG

متوافق مع: SKU

IFP9850-3

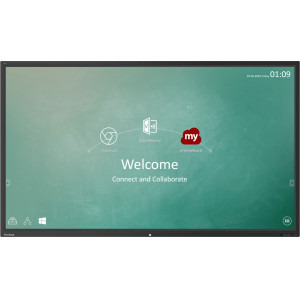

ViewBoard® 98'' 4K Interactive Display
